M0SS-101 is a virtual analog monosynth built for a pure, hands-on subtractive synthesis, packed into a compact, rugged guitar pedal enclosure.

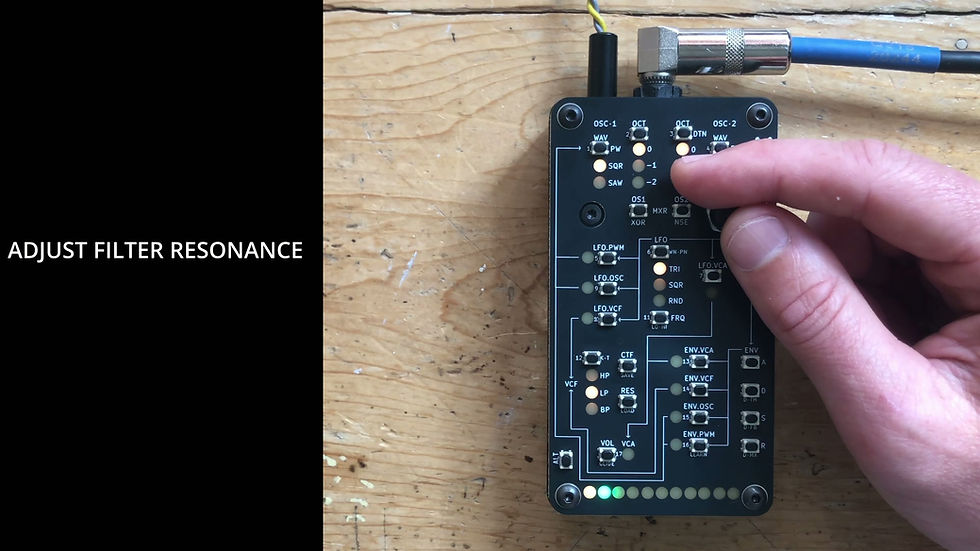

With 26 buttons and a single encoder, M0SS-101 gives you intuitive access to a deep 42-parameter virtual analog synthesis engine. Press a button to select a parameter, turn the encoder to modify it, and monitor your signal flow via the LED system.
Using a MIDI controller, you can map any parameter via intuitive MIDI learn, making it easy to integrate into your setup. Up to 17 presets can be saved and recalled for quick access to your favourite sounds.
The 26 RGB LEDs use colour and brightness to represent signal flow, modulation paths, settings and selections. A separate row of 11 LEDs at the bottom gives you instant visual feedback on the currently selected parameter.

Connections:
USB-A MIDI Host.
1/8" MIDI input (TRS Type-1)
1/8" MIDI thru (soft-thru) (TRS Type-1).
1/4" Mono line level audio output.
9vDC center negative (Boss-style) power input.

Features:
2 oscillators (OSC), with stackable square and sawtooth waveforms, each with octave (OCT) and pulse width (PW) control. Oscillator 2 can be detuned (DTN).
1 filter (VCF), with high-pass, low-pass or bandpass response, resonance control, and optional key-tracking (K-T).
1 low frequency oscillator (LFO), with square (SQR), triangle (TRI), or random (RND) waveforms, and a frequency (FRQ) range of 0.01hz to 10khz.
1 amplifier (VCA).
1 envelope generator (ENV), with attack, decay, sustain and release controls (ADSR), with timings from 0.1ms to 20s, adjustable curves, and a gain inversion mode.
1 noise generator (NSE) with pink (PN) or white (WN) noise algorithms.
1 XOR module, applied to the square waves of the 2 oscillators.
1 mixer (MXR) with inputs from each oscillator, the noise generator, and the XOR module.
1 delay module, with time (D-TM), feedback (D-FB), and mix (D-MX) controls.
1 glide module with adjustable speed.
1 pitch-bend module with adjustable upward and downward range.
9 modulation paths with individual gain, connecting the LFO and ENV to the VCF cutoff, PW, OSC-1 pitch, and VCA, or to trigger the ENV from the LFO square wave.
1 flash memory unit to store up to 17 presets.

Dimensions:
12cm x 6cm x 4.5cm

Power Consumption:
130mA (plus up to 500mA when a USB MIDI controller is connected)
